Working Equipment for Outrigger

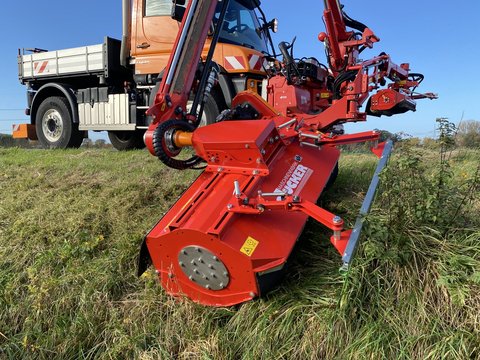

Flail mover head VMS 1200 ÖKO

The VMS 1200 ÖKO flail mower head is driven by a toothed belt drive. It is optionally available for right-hand or left-hand operation. The flail shaft is equipped with newly designed V-blades. These prevent insects from being sucked in as far as possible. The VMS is equipped with a replaceable wear cover. The bearings of the flail shaft and the sensing roller are maintenance-free. The sensing roller has two slanted areas.
The mowing head rolls without pressure at these points. The mowing head can be equipped with a Tasttronic.

Technical ddata

 VMS 1200 ÖKO
Working width1200 mm
Rotor speed2400 rpm
Weight350 kg

The VMS 1200 ÖKO can be attached to the following booms:
UNA 450/500/600, DUA 700/800, HDM 600/700, MK 25 700/800 and DAM 900/1050
